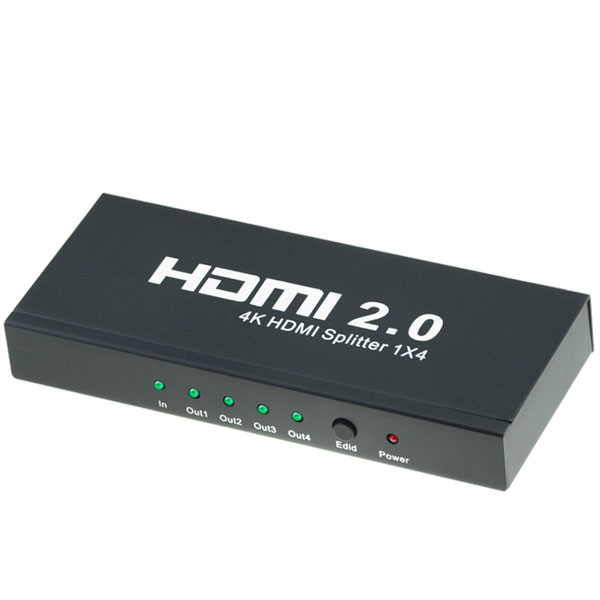

This 2.0v HDMI Splitter use a single HDMI source,accessing to multiple HDMI sinks. HD104 allows one HDMI device to be split easily to 4 HDMI compatible monitors or projectors. In addition,it can be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up to 4K@60Hz.

This splitter supports EDID management function,the users can choose according to their own needs.

Support HDMI 2.0 ,HDCP2.2

Support 3D video format

Support high resolution up to 4096x2160p/30Hz, 3840X2160/60HZ, 3840X2160/30HZ, Support the max baud rate of 6G and TMDS clock can be up to 600 MHz

Support 8/10/12/36/48 bit deep color Support serial port online upgrade Support EDID management

5V power adapter

Support AWG26 HDMI standard cable:

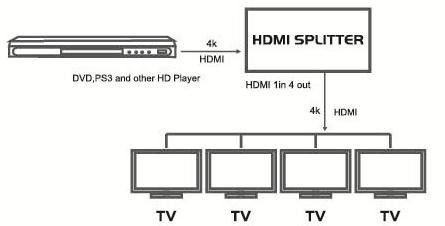

Support single HDMI source,accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and etc

00: Mixed EDID: always follow the lowest resolution of the displays connected to output 2 in order to support all displays show the source.

11: Copy EDID: output 1 is prior port

a.When output 1 is connected to one display, another display which connected to output 2 will follow the Resolution of output 1.

b.When output 1 is disconnected, output 2 will output 1080p only.

10: Default 1080p output: output a default 1080p source, in this case all outputs will display 1080p if they support resolution 1080p and above.

01: Default 4Kx2K output: output a default 4Kx2K source, in this case all outputs will display 4Kx2K if they support resolution 4Kx2K and above.

Note: Please restart the splitter when change EDID mode! 4.Connecting and operating

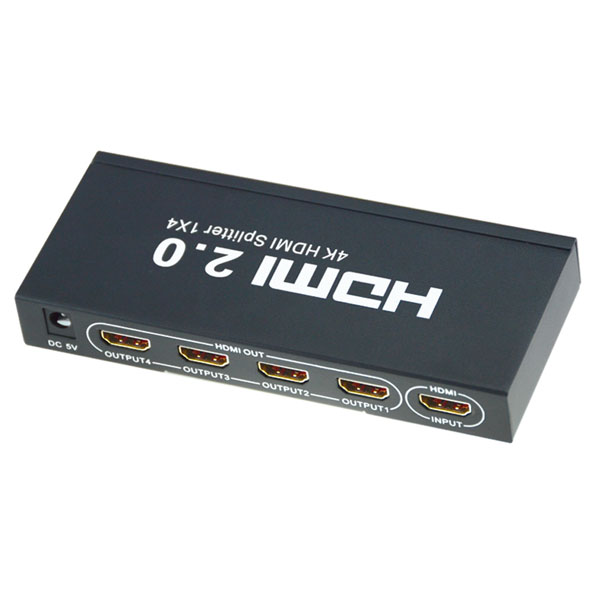

1)Connect the HDMI input source to input port of HDMI splitter.

2)Connect the HDMI splitter output ports to the displays.

3)Power up splitter, source and displays.

1.item *1

2.DC5V power adapter *1 (USA, EU, UK, Autralia standard for you selection)

3.USER Manual *1 (English version)
